SPECIFICATIONS
Specifications:
Original Base Price: $4,295.00
Number Produced: 9,958 (5,528 in L72 Trim)
Wheelbase: 98-Inches
Track, Front: 57.6-Inches
Track, Rear: 58.3-Inches
Length: 175.3-Inches
Curb Weight: 3160-Pounds

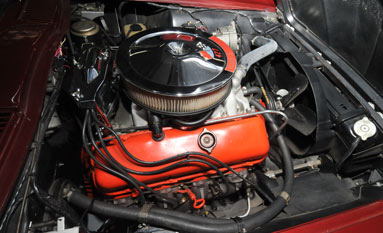

Engine: 90-Degree V8
Displacement: 427-cid
Compression Ratio: 11.0:1
BHP (Brake Horsepower): 425@5,600rpm/460lbs.-ft.@4,000rpm
Carburetor: 4-BBL (780cfm)

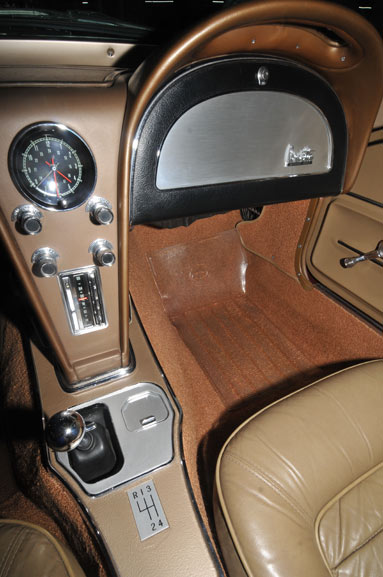

Transmission: Muncie M22, 4-Speed (2.20:1 First Gear)
Differential:
Standard 3.55:1 (General Purpose)
Optional 3.70:1 (Mountain), 3.36:1 (Economy Cruise), 4.11:1 (Special Purpose)
Front Suspension: Independent Coil Spring
Rear Suspension: Transverse, Multi-Leaf Spring
Brakes:
Front Brakes: 11.75-Inch, Disc
Rear Brakes: 11.75-Inch Disc
Ignition: Transistor
Battery: 12-Volt

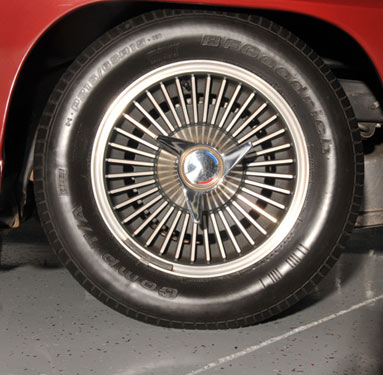

Tire Size: 7.75 x 15, 4-Ply Black Wall
Fuel Capacity: 20-Gallons
Oil Capacity: 6-Quarts (w/Filter)
Cooling System: 22-Quarts (with Heater)
DETAILS
There is a saying in the performance business; “Bigger is always better,
and too much is just enough”. Apparently, Chevrolet discovered this early in their performance
career, constantly installing larger, more powerful engines with each passing year. And 1966 would

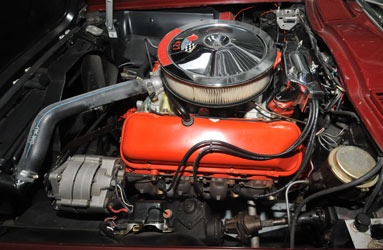

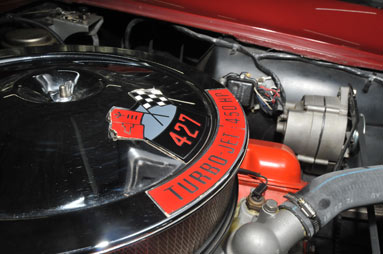

usher in the dominance of the Big Block Chevy Engine! The L72 engine was the forerunner of
the L88, 427. And in reality there were a limited number of “engineering use only” test subjects
that were produced in 1966; Three to be exact. These three engines were distributed to race teams
known to assist Chevrolet with proving new designs; one of which was Roger Penske, the other two were
NASCAR teams. Peter Fonda (yes, Easy Rider, Peter Fonda) found himself on the receiving end of one
of these “test” engines. His car equipped with a 2.36:1 differential! Although not an official offering,
Mr. Fonda wanted to set a Land Speed Record at Bonneville.
